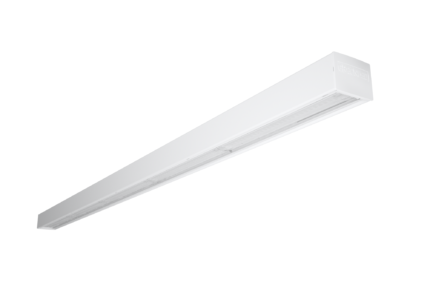

Omega Linear Basic

Cost-efficient luminaire with an evenly illuminating light surface for in-store needs. Suitable for suspension, rail and continuous solutions.

Benefits and suitability

Benefits

Omega Linear Basic optics create a visually even light surface.

In-store needs have primarily been taken into account with the optics. The wide 90-degree optics are suitable for general lighting, the asymmetrical optics for vertical surfaces of edge areas and symmetrical optics for aisles between shelf spaces.

The steel frame is available as zinc coated (default) or white (RAL 9010, option). The luminaire is always equipped with a DALI driver and is available as an on/off solution with CLO programming or wireless Casambi control.

This luminaire can be installed with lighting suspension tracks, wire brackets, rail brackets, ceiling surface brackets or as continuous installation, and it can be equipped with Wago Winsta, EnstoNet or Wieland cables at delivery. The luminaire does not require opening during installation, and the wires and cables can be hidden in the indentation on the frame.

Suitability

Ideal for in-store lighting where a visually evenly illuminating light surface is needed.

Product families and variants

Model Type Code Power Luminous flux Luminaire Efficacy Lifetime Operating temperature
OMEGA LINEAR BASIC 1156mm GLOLB01035 35 W 5420 lm 153 lm/W L80B50>100 000h,
L90B50>72 000h,
C10 100 000h
0 - +45°C
OMEGA LINEAR BASIC 1156mm GLOLB01047 47 W 6770 lm 144 lm/W L80B50>100 000h,
L90B50>50 000h,
C10 100 000h
0 - +45°C
OMEGA LINEAR BASIC 1156mm GLOLB01052 52 W 7390 lm 142 lm/W L80B50>72 000h,
L90B50>65 000h,
C10 100 000h
0 - +45°C
OMEGA LINEAR BASIC 1156mm GLOLB01062 62 W 8610 lm 140 lm/W L80B50>72 000h,
L90B50>59 000h,
C10 100 000h
0 - +35°C
OMEGA LINEAR BASIC 2283mm GLOLB01068 68 W 10650 lm 156 lm/W L80B50>100 000h,
L90B50>72 000h,
C10 100 000h
0 - +45°C
OMEGA LINEAR BASIC 2283mm GLOLB01087 87 W 13310 lm 153 lm/W L80B50>100 000h,
L90B50>50 000h,
C10 100 000h
0 - +35°C
OMEGA LINEAR BASIC 2283mm GLOLB01103 103 W 15150 lm 148 lm/W L80B50>72 000h,
L90B50>57 000h,
C10 100 000h
0 - +30°C
OMEGA LINEAR BASIC 2283mm GLOLB01107 107 W 15650 lm 147 lm/W L80B50>72 000h,
L90B50>53 000h,
C10 100 000h
0 - +45°C
OMEGA LINEAR BASIC 2283mm GLOLB01117 117 W 16750 lm 143 lm/W L80B50>72 000h,
L90B50>48 000h,
C10 100 000h
0 - +40°C
OMEGA LINEAR BASIC 2843mm GLOLB01083 83 W 13080 lm 157 lm/W L80B50>100 000h,
L90B50>68 000h,
C10 100 000h
0 - +35°C
OMEGA LINEAR BASIC 2843mm GLOLB01120 120 W 17970 lm 149 lm/W L80B50>72 000h,
L90B50>54 000h,
C10 100 000h
0 - +45°C
OMEGA LINEAR BASIC 2843mm GLOLB01147 147 W 20740 lm 142 lm/W L80B50>72 000h,
L90B50>45 000h,
C10 100 000h
0 - +35°C

Dimensions

Model Type Code Length (L) Height (H) Width (W) Weight
OMEGA LINEAR BASIC 1156mm GLOLB01035 1156 mm 51 mm 65 mm 2,3 kg
OMEGA LINEAR BASIC 1156mm GLOLB01047 1156 mm 51 mm 65 mm 2,3 kg
OMEGA LINEAR BASIC 1156mm GLOLB01052 1156 mm 51 mm 65 mm 2,3 kg
OMEGA LINEAR BASIC 1156mm GLOLB01062 1156 mm 51 mm 65 mm 2,3 kg
OMEGA LINEAR BASIC 2283mm GLOLB01068 2283 mm 51 mm 65 mm 4,0 kg
OMEGA LINEAR BASIC 2283mm GLOLB01087 2283 mm 51 mm 65 mm 4,0 kg
OMEGA LINEAR BASIC 2283mm GLOLB01103 2283 mm 51 mm 65 mm 4,0 kg
OMEGA LINEAR BASIC 2283mm GLOLB01107 2283 mm 51 mm 65 mm 4,0 kg
OMEGA LINEAR BASIC 2283mm GLOLB01117 2283 mm 51 mm 65 mm 4,0 kg
OMEGA LINEAR BASIC 2843mm GLOLB01083 2843 mm 51 mm 65 mm 5,0 kg
OMEGA LINEAR BASIC 2843mm GLOLB01120 2843 mm 51 mm 65 mm 5,0 kg
OMEGA LINEAR BASIC 2843mm GLOLB01147 2843 mm 51 mm 65 mm 5,0 kg

General Description

Colour Temperature: 3000, 4000, 5000 K (1
Colour Rendering Index: RA≥ 80 (option 90)
Optic: PMMA
IP class: IP20
Supply voltage: 220-240 Vac
Frequency: 50-60 Hz
PF: >0.95
THD: <20%
Connection:

Chainable max 5*2,5mm2 OR max 3*2,5mm2 and DALI +/-. Optional through wiring.

Dimmability: Casambi, DALI, On/off
Colour: Galvanized steel (white steel RAL 9010 as an option)
Material of the luminaire body: Steel
Guarantee: 5 years
Accessories (Installation):

9908688 Omega Linear ceiling bracket, 9905206 Omega Linear ladder- and threaded rod bracket, 9905203 / 9905204 Omega Linear adjustable susp.rail bracket, G00357 / G00358 Omega Linear suspension wire bracket 3m / 5m, 9908337 Omega Linear horizontal wire bracket (max ⌀8 mm), G00359 Omega Linear lighting track bracket, O Linear railbracket(1, 9908359 / 9908360 Omega Linear railbracket 45 degree, 9908437 Omega Linear suspension rail bracket 70mm, 9908468 Omega Linear suspension rail bracket 82mm, 9908336 Omega Linear suspension rail bracket 110mm
