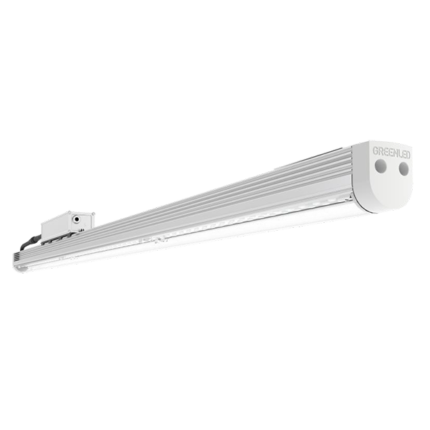

Eco R II


Eco R II

Fundamental Finnish luminaire know-how. Excellent LEDs (180 lm/W), reliable electronic control gear and the structure of the luminaire designed on terms the components offers efficient yet very energy-efficient and reliable end result.1-10V dimming makes your luminaire a part of a smart lighting.

PURPOSE: Industry, Outdoor lighting, Parking hall

INSTALLATION: Ceiling surface, Contact track, Luminaire suspension track, Suspended

Benefits and suitability

Benefits

IP65 rated luminaire that withstands the most difficult environment, with easy and quick installation. High impact resistance with IK08 classification. Key to the extremely cost-efficient lighting solution. Electronic control gear outside of the luminaire body guarantees a long lifetime and makes maintenance easy.

Suitability

A generic luminaire for several purposes that is suitable for parking halls, storages, industrial halls, stores and shelters.

General Description

Product family: Eco R II 35 W / Eco R II 47 W
Product family code: GLR92350 / GLR92470
Power: 35 W / 47 W
Luminous flux: 4600 lm / 6000 lm
Luminaire efficacy: jopa 131 lm/W
Light source: LED
Colour temperature: 3000 K, 4000 K, 5000 K
Colour rendering (CRI): > 80
Standard optics: Frosty or transparent
ECG: Inventronics
Connection:

Input: 3-pole rubber installation cable,3m

Dimmability: 1-10V
Suplly voltage: 100-240 Vac
Frequency: 50-60 Hz
PF: > 0.9
THD: < 20%
IP-Class: IP 65
Operational temp.: -40 - +45aC
Colour: Grey alumininum
Material: Aluminum
Light source shield: PC
Lifetime: L80 80 000h
Guarantee: 5 years
Accessories:

Rail brackets MEK 70/80/110/120 mm, 3 m 1-10V cable IP67 rapid connector,Wago Winsta
5-pole IP21 rapid connector

Lenght: 35W: 1093 mm / 47W: 1443 mm
Height: 77 mm
Width: 41 mm
Weight: 35W: 1.7 kg / 47W: 2.2 kg
