ECO S EVI

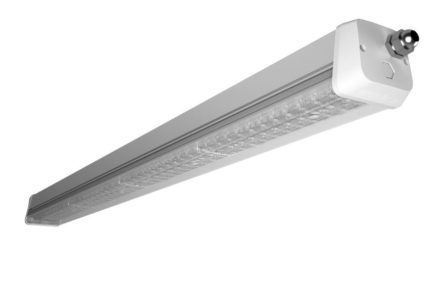

ECO S EVI is a new linear luminaire for generic lighting. It has a streamlined design language and a high level of environmental tolerance (IP65 & IK08) for a demanding usage environment. The luminaire is available in a range of different length, power and light distribution options for various environments. Several surface treatment options are available for different environments from industrial premises to premises that require cleanliness. The D classification of the luminaire enables installation even in dusty environments.
The luminaire’s pressure equalisation is based on a replaceable Gore filter, ensuring that the pressure-balancing air is kept clean in a controlled manner and protecting the internal parts of the luminaire from dust and dirt.
Benefits and suitability
Benefits
The luminaire’s components and materials have been carefully selected to ensure energy efficiency and a long lifespan. Thanks to its high-quality optics, the luminaire delivers even and glare-free lighting. ECO S EVI meets the needs of demanding environments and it has been designed to be easy to install and connect.
Suitability
ECO S EVI is suited for indoor lighting in the food industry, heavy industry, logistics and agriculture. With a comprehensive range of light distribution options, this luminaire can be installed in both low-ceiling and high-ceiling premises (2 to 12m).
Product families and variants
| Model | Type Code | Power | Luminous flux | Luminaire Efficacy | Lifetime | Operating temperature |
|---|---|---|---|---|---|---|
| GLESE | GLESE01P029 | 29 W | 4350 lm | 150 lm/W | L70F10>100000 h; L80F10=93000 h | -20°C - +45°C |
| GLESE | GLESE01P034 | 34 W | 5100 lm | 150 lm/W | L70F10>100000 h; L80F10=96000 h | -20°C - +45°C |
| GLESE | GLESE01P040 | 40 W | 5150 lm | 129 lm/W | L70F10>100000 h; L80F10=91000 h | -20°C - +45°C |
| GLESE | GLESE01P052 | 52 W | 7150 lm | 137 lm/W | L70F10>100000 h; L80F10>100000 h | -20°C - +35°C |
| GLESE | GLESE01P062 | 62 W | 9200 lm | 148 lm/W | L70F10>100000 h; L80F10>100000 h | -20°C - +45°C |
| GLESE | GLESE01P070 | 70 W | 10050 lm | 143 lm/W | L70F10>100000 h; L80F10=94000 h | -20°C - +35°C |
| GLESE | GLESE01P074 | 74 W | 10500 lm | 142 lm/W | L70F10>100000 h; L80F10=83000 h | -20°C - +35°C |
| GLESE | GLESE01P082 | 82 W | 11800 lm | 144 lm/W | L70F10=80000 h; L80F10=80000 h | -20°C - +30°C |
| GLESE | GLESE01P097 | 97 W | 13350 lm | 137 lm/W | L70F10=93000 h; L80F10=93000 h | -20°C - +30°C |
| GLESE | GLESE01P112 | 112 W | 16900 lm | 150 lm/W | L70F10>100000 h; L80F10>100000 h | -20°C - +50°C |
| GLESE | GLESE01P115 | 115 W | 17000 lm | 148 lm/W | L70F10>100000 h; L80F10>100000 h | -20°C - +40°C |
| GLESE | GLESE01P121 | 121 W | 15500 lm | 128 lm/W | L70F10=88000 h; L80F10=88000 h | -20°C - +35°C |
| GLESE | GLESE01P146 | 146 W | 20700 lm | 142 lm/W | L70F10>100000 h; L80F10>100000 h | -20°C - +40°C |
Dimensions
| Model | Type Code | Length (L) | Height (H) | Width (W) | Weight |
|---|---|---|---|---|---|
| GLESE | GLESE01P029 | 954 mm | 84 mm | 97 mm | 3 kg |
| GLESE | GLESE01P034 | 954 mm | 84 mm | 97 mm | 3 kg |
| GLESE | GLESE01P040 | 954 mm | 84 mm | 97 mm | 3 kg |
| GLESE | GLESE01P052 | 954 mm | 84 mm | 97 mm | 3 kg |
| GLESE | GLESE01P062 | 1254 mm | 84 mm | 97 mm | 4 kg |
| GLESE | GLESE01P070 | 1254 mm | 84 mm | 97 mm | 4 kg |
| GLESE | GLESE01P074 | 954 mm | 84 mm | 97 mm | 3 kg |
| GLESE | GLESE01P082 | 954 mm | 84 mm | 97 mm | 3 kg |
| GLESE | GLESE01P097 | 1254 mm | 84 mm | 97 mm | 4 kg |
| GLESE | GLESE01P112 | 1554 mm | 84 mm | 97 mm | 5 kg |
| GLESE | GLESE01P115 | 1254 mm | 84 mm | 97 mm | 4 kg |
| GLESE | GLESE01P121 | 1254 mm | 84 mm | 97 mm | 4 kg |
| GLESE | GLESE01P146 | 1554 mm | 84 mm | 97 mm | 5 kg |
General Description
| Colour Temperature: | 3000 K, 4000 K, 5000 K (1 |
|---|---|
| Colour Rendering Index: | RA≥ 80 (CRI90) |
| Optic: | Narrow, medium wide, wide, frost |
| Light source shield: | PMMA |
| IP class: | IP65 |
| IK class: | IK08 |
| Supply voltage: | 202-254 Vac |
| Frequency: | 50-60 Hz |
| PF: | ≥0,9 |
| THD: | <20% |
| Connection: | Internal chainable terminal block 5*2.5 mm2 or 3*2.5 mm2 and +/- DALI (both option with pre-assembled installation cable set) |
|---|---|
| Dimmability: | ON/OFF, DALI |
| Colour: | Anodized grey (option painted to RAL-coded colour) |
| Material of the luminaire body: | Aluminium |
| Guarantee: | 5 years |
| Accessories (Installation): |
Lighting suspension rail bracket, 3908115 Ceiling bracket, 3508174 Horizontal wire bracket, 9905199 Adjustable surface mounting bracket, Adjustable lighting track bracket |
| Accessories (Others): | Through wiring set, chaining set, installation cable, installation cable with quick connectors (IP20). Surface-installed seal that prevents the accumulation of dust and dirt (available for 954 mm and 1,254 mm luminaires). |
Notes:
1) Only 4000 K and 5000 K 52 W, 62 W, 82 W, 112 W, 115 W, 146 W
D-marked luminaire with limited surface temperature. Meets the requirements of the IEC 60598-2-24 standard.
