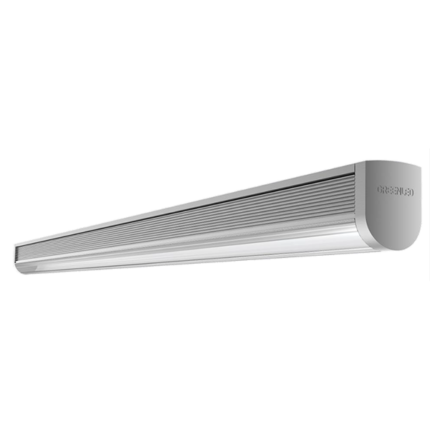

Eco E II

Finnish lighting know-how at its best. Excellent LEDs (180 lm/W). The design of the luminaire ensures the best end result in terms of long lifetime as well as efficiency. DALI control provides the comfort and energy-efficiency of smart lighting.

PURPOSE: Industry, Parking, Sports hall

INSTALLATION: Ceiling surface, Contact track, Luminaire suspension track, Suspended

Benefits and suitability

Benefits

Extremely energy efficient low lifetime cost luminaire for generic lighting. Luminaire efficacy up to 140 lm/W. Long lifetime thanks to the best components and excellent thermal structure. Easy and quick installation enabled by the design.

Suitability

Replace your old e.g. linear fluorescent based lighting in reliable, easy and extremely energy efficient manner. Generic lighting for various applications e.g. to parking halls, malls, stores, loading docks as well as to industrial and logistics halls. Installation height less than 6m.

Product families and variants

Model Type Code Power Luminous flux Luminaire Efficacy Lifetime Operating temperature
ECO E II 34 W GL99340 34 W 4700 lm 138 lm/W L80, F10 80 000 h -25 - +45°C
ECO E II 52 W GL99520 52 W 6600 lm 127 lm/W L80, F10 80 000 h -25 - +45°C
ECO E II 68 W GL99680 68 W 9500 lm 140 lm/W L80, F10 80 000 h -25 - +45°C
ECO E II 92 W* GL99920 92 W 12000 lm 130 lm/W L80, F10 80 000 h -25 - +45°C

Dimensions

Model Type Code Length (L) Height (H) Width (W) Weight
ECO E II 34 W GL99340 880 mm 82 mm 66 mm 3,2 kg
ECO E II 52 W GL99520 880 mm 82 mm 66 mm 3,2 kg
ECO E II 68 W GL99680 1480 mm 82 mm 66 mm 5 kg
ECO E II 92 W* GL99920 1480 mm 82 mm 66 mm 5 kg

General Description

Colour Temperature: 3000 K, 4000 K, 5000 K
Colour Rendering Index: RA≥ 80
Optic: Transparent
Light source shield: PC
IP class: IP 44
Supply voltage: 220-240 Vac
Frequency: 50-60 Hz
PF: >0.95
THD: <20%
Connection:

Internal terminal block supporting daisy chaining on ON/OFF versions max 5*2.5 mm2, OR on DALIversions max 3*2.5mm2 and +/- DALI (option: both versions with the pre installed
connection cable)

Dimmability: on/off or DALI (Eco E II 92W only DALI-version)
Colour: Grey anodized aluminum
Material of the luminaire body: Aluminum
Guarantee: 5 years
Accessories (Installation):

3508008 Surface mounting, 3508006 MEK 70 suspension rail bracket, 3508009 Horizontal wire bracket
