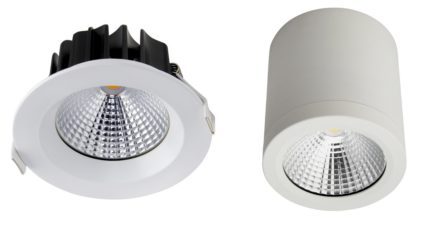

Delta Downlight G2
Sleek and cost-effective LED downlight for lobbies and public spaces. High-quality components and careful finishing guarantee a safe choice.
Benefits and suitability
Benefits
Cost-effective and durable LED lighting that delivers a uniform and glare-free illumination. High-quality components and perfected lighting design ensure a long lifecycle.
Suitability
LED downlight for lobbies and public spaces. The embedded and surface-mounted versions create a uniform look for all spaces and ceiling solutions.
Product families and variants
| Model | Type Code | Power | Luminous flux | Luminaire Efficacy | Lifetime | Operating temperature |
|---|---|---|---|---|---|---|
| Downlight G2 Recessed 13W | GLDR02013XXXXX | 13 W | 1090 lm | 84 lm/W | L85F10 > 50 000h | -20 - +45°C |
| Downlight G2 Recessed 18W | GLDR02018XXXXX | 18 W | 1930 lm | 107 lm/w | L85F10 > 50 000h | -20 - +45°C |
| Downlight G2 Recessed 35W | GLDR02035XXXXX | 35 W | 3360 lm | 96 lm/W | L85F10 > 50 000h | -20 - +45°C |
| Downlight G2 Ceiling 15W | GLDC02015XXXXX | 15 W | 1260 lm | 84 lm/W | L85F10 > 50 000h | -20 - +45°C |
| Downlight G2 Ceiling 25W | GLDC02025XXXXX | 25 W | 2850 lm | 114 lm/W | L85F10 > 50 000h | -20 - +45°C |
| Downlight G2 Ceiling 35W | GLDC02035XXXXX | 35 W | 3430 lm | 98 lm/W | L85F10 > 50 000h | -20 - +45°C |
Dimensions
| Model | Type Code | Length (L) | Height (H) | Width (W) | Weight |
|---|---|---|---|---|---|
| Downlight G2 Recessed 13W | GLDR02013XXXXX | 110 mm | 53 mm | 0,6 kg | |
| Downlight G2 Recessed 18W | GLDR02018XXXXX | 190 mm | 75 mm | 1,42 kg | |
| Downlight G2 Recessed 35W | GLDR02035XXXXX | 225 mm | 87 mm | 1,60 kg | |
| Downlight G2 Ceiling 15W | GLDC02015XXXXX | 90 mm | 100 mm | 0,5 kg | |
| Downlight G2 Ceiling 25W | GLDC02025XXXXX | 120 mm | 110 mm | 0,75 kg | |
| Downlight G2 Ceiling 35W | GLDC02035XXXXX | 160 mm | 120 mm | 1,3 kg |
General Description
| Colour Temperature: | 3000K, 4000K (1 |
|---|---|
| Colour Rendering Index: | RA≥ 80 |
| Optic: | 60 ° |
| Light source shield: | Glass |
| IP class: | GLDR = IP20/IP44 GLDC = IP54 |
| IK class: | IK03 |
| Supply voltage: | 220-240 Vac |
| Frequency: | 50-60 Hz |
| PF: | >0,90 |
| THD: | <20% |
| Connection: | Terminal Block GLDR = 3*1.5mm² / GLDC = 3*2.5 mm² |
|---|---|
| Dimmability: | DALI, ON/OFF (Downlight G2 Recessed 13W & Downlight G2 Ceiling 15W: ON/OFF) |
| Colour: | White |
| Material of the luminaire body: | Aluminum |
| Guarantee: | 5 years |
