Alfa Q

alfa-q

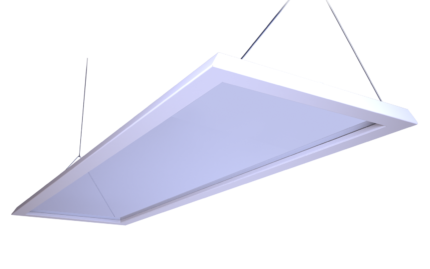

Alfa Q

Slim design combined with appealing illumination result. Alfa Q fulfils the strict illumination requirements of offices and different interiors with its efficiency and glare- free lighting capability. Adjustable colour temperature (tunable white) enables adjustment of the lighting as you desire from warm to cool white. Completely transparent when turned off.

PURPOSE: Hospital, Office, School, Shop

INSTALLATION: Suspended

Benefits and suitability

Benefits

Perfect pendant luminaire for offices and public areas. Light temperature adjustment helps to maintain natural circadian rhythm during workdays. Light distribution optimized for indoors makes lighting pleasantly even and glare-free. Easy installation, mechanical mounting and additional wiring only to power supply housing. The housing is chainable, through-wired or mounted straight to ceiling box.

Suitability

A general pendant luminaire for indoor areas. Alfa Q is suitable for offices, conference rooms, rest areas, schools and other public premises. Power supply box can be surface mounted or remote driver or concealed above false ceiling.

Product families and variants

Product family Product family code Power Luminous flux Luminaire Efficacy Lifetime Operating temperature
ALFA Q TW 56W GLAQTW00056 56 W 5300 lm 95 lm/W L80, F10 > 50000 -20 - +50°C
ALFA Q 58W GLAQ00058 58 W 5400 lm 94 lm/W L80, F10 > 50000 -20 - +50°C

Mitat

Product family Product family code Lenght (L) Height (H) Width (W) Weight
ALFA Q TW 56W GLAQTW00056 1107 mm / 400 mm 24 mm / 31 mm 350 mm / 118 mm 4 kg / 1 kg
ALFA Q 58W GLAQ00058 1107 mm / 400 mm 24 mm / 31 mm 350 mm / 118 mm 4 kg / 1 kg

General Description

Colour Temperature: 2700 - 6500 K / 3000 K, 4000 K, 5000 K
Colour Rendering Index: RA≥ 80
Optic: clear
Light source shield: PMMA
IP class: IP 20
Suplly voltage: 220-240 Vac
Frequency: 50-60 Hz
PF: > 0.95
THD: < 20%
Connection:

Separate power supply box: chainable, wired-through or ceiling box (max. 5x2,5mm²).

Dimmability: DALI (DT8 one DALI address) / ON/OFF or DALI
Colour: White
Material of the luminaire body: Steel
Guarantee: 5 years
Accessories:

Pre-programmed Tunable White control with peripherals.
