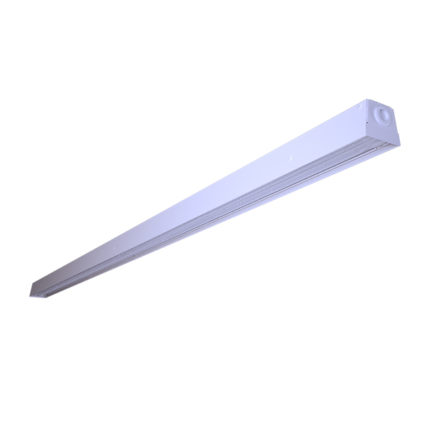

Omega Mini
Omega Mini
The OMEGA product family offers superior energy-efficiency combined with superb optics. The structure of the product and ease of installation always ensure a cost-effective solution.Cost-efficient luminaire for lighting commercial, logistics and industrial premises.
PURPOSE: Industry, Shop, Sports hall
INSTALLATION: Ceiling surface, Luminaire suspension track, Suspended
Benefits and suitability
Benefits
An energy-efficient general luminaire offering with suitable light distribution options. Versatile mounting options without special brackets. Available with DALI controls.
Suitability
Shops, warehouses, logistics and industrial premises. Narrow optics is suitable for lighting premises with higher ceilings, wide optics is suitable for lighting lower premises and vertical surfaces.
Product families and variants
| Product family | Product family code | Power | Luminous flux | Luminaire Efficacy | Lifetime | Operating temperature |
|---|---|---|---|---|---|---|
| OMEGA MINI 32W | GLOM02032 | 32 W | 4300 lm | 134 lm/W | L80, F10 ≥ 60 000 h | 0 - +40°C |
| OMEGA MINI 43W | GLOM02043 | 43 W | 5900 lm | 137 lm/W | L80, F10 ≥ 50 000 h | 0 - +40°C |
| OMEGA MINI 62W | GLOM02062 | 62 W | 7550 lm | 122 lm/W | L80, F10 ≥ 70 000 h | 0 - +40°C |
| OMEGA MINI 58W | GLOM02058 | 58 W | 7600 lm | 131 lm/W | L80, F10 ≥ 50 000 h | 0 - +40°C |
| OMEGA MINI 70W | GLOM02070 | 70 W | 8600 lm | 123 lm/W | L80, F10 ≥ 50 000 h | 0 - +35°C |
| OMEGA MINI 81W | GLOM02081 | 81 W | 10500 lm | 130 lm/W | L80, F10 ≥ 70 000 h | 0 - +35°C |
| OMEGA MINI 105W | GLOM02105 | 105 W | 13000 lm | 124 lm/W | L80, F10 ≥ 70 000 h | 0 - +35°C |
| OMEGA MINI 115W | GLOM02115 | 115 W | 13800 lm | 120 lm/W | L80, F10 ≥ 60 000 h | 0 - +35°C |
| OMEGA MINI 111W | GLOM02111 | 111 W | 15500 lm | 140 lm/W | L80, F10 ≥ 60 000 h | 0 - +35°C |
| OMEGA MINI 142W | GLOM02142 | 142 W | 17500 lm | 123 lm/W | L80, F10 ≥ 50 000 h | 0 - +35°C |
| OMEGA MINI 133W | GLOM02133 | 133 W | 19000 lm | 143 lm/W | L80, F10 ≥ 50 000 h | 0 - +35°C |
Dimensions
| Product family | Product family code | Length (L) | Height (H) | Width (W) | Weight |
|---|---|---|---|---|---|
| OMEGA MINI 32W | GLOM02032 | 1158 mm | 48 mm | 55 mm | 5,5 kg |
| OMEGA MINI 43W | GLOM02043 | 1158 mm | 48 mm | 55 mm | 5,5 kg |
| OMEGA MINI 62W | GLOM02062 | 1158 mm | 48 mm | 55 mm | 5,5 kg |
| OMEGA MINI 58W | GLOM02058 | 1440 mm | 48 mm | 55 mm | 6 kg |
| OMEGA MINI 70W | GLOM02070 | 1440 mm | 48 mm | 55 mm | 6 kg |
| OMEGA MINI 81W | GLOM02081 | 2000 mm | 48 mm | 55 mm | 8,5 kg |
| OMEGA MINI 105W | GLOM02105 | 2000 mm | 48 mm | 55 mm | 8,5 kg |
| OMEGA MINI 115W | GLOM02115 | 2000 mm | 48 mm | 55 mm | 8,5 kg |
| OMEGA MINI 111W | GLOM02111 | 2000 mm | 48 mm | 55 mm | 8,5 kg |
| OMEGA MINI 142W | GLOM02142 | 2568 mm | 48 mm | 55 mm | 10 kg |
| OMEGA MINI 133W | GLOM02133 | 2568 mm | 48 mm | 55 mm | 10 kg |
General Description
| Colour Temperature: | 3000, 4000, 5000 K |
|---|---|
| Colour Rendering Index: | RA≥ 80 |
| Optic: | Lens optic wide, medium, batwing, asymmetric, oval |
| Light source shield: | PC |
| IP class: | IP21 |
| Suplly voltage: | 198-264 Vac |
| Frequency: | 50-60 Hz |
| PF: | >0.95 |
| THD: | <20% |
| Connection: | Chainable max 5*2.5mm2 OR max 3*2.5mm2 and DALI +/- |
|---|---|
| Dimmability: | ON/OFF or DALI |
| Colour: | Galvanized steel (white powder coating RAL 9010 as an option) |
| Material of the luminaire body: | Steel |
| Guarantee: | 5 years |
| Accessories (Installation): |
Extension profile 1), Row mounting brackets ^2^, Surface mounting, T-list mounting, Wire suspension bracket, Luminaire track bracket, Threaded rod bracket, Installation Nut |
