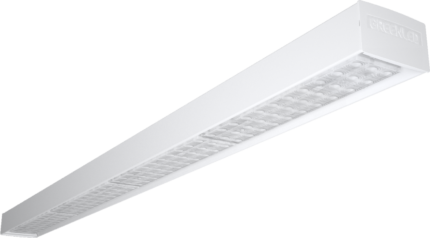

Omega
The OMEGA product family offers superior energy-efficiency combined with superb optics.
The structure of the product and ease of installation always ensure a cost-effective solution.
PURPOSE: Hospital, Industry, Office, Parking hall, School, Shop, Sports hall
INSTALLATION: Ceiling surface, Contact track, Luminaire suspension track, Suspended
Benefits and suitability
Benefits
Luminaire with wide range of mechanical arrangements. Self-supporting between the MECH-rails. Wide range of different brackets for different mountings, joining parts and extensions provide cost-efficiency in implementation. Suitable for different purposes thanks to high-quality lenses and multiple power versions. Winsta or Enstonet systems enable easy connectivity and quick installation. A lighting solution that can be upgraded easily.
Suitability
Versatile OMEGA product family has been designed to illuminate the stores, logistic premises, sports halls, offices and public premises. The OMEGA luminaires provide even and glare-free light.
Product families and variants
| Product code | Product family code | Power | Luminous flux | Luminaire Efficacy | Lifetime | Operating temperature |
|---|---|---|---|---|---|---|
| OMEGA 43W | GLO02043 | 43 W | 6600 lm | 153 lm/W | L70F10>100000h; L80F10>100000h | -20 - +45°C |
| OMEGA 47W | GLO02047 | 47 W | 6600 lm | 140 lm/W | L70F10>100000h; L80F10=91000h | -20 - +40°C |
| OMEGA 57W | GLO02057 | 57 W | 8450 lm | 148 lm/W | L70F10>100000h; L80F10>100000h | -20 - +45°C |
| OMEGA 63W | GLO02063 | 63 W | 8450 lm | 134 lm/W | L70F10>100000h; L80F10=81000h | -20 - +40°C |
| OMEGA 62W | GLO02062 | 62 W | 10500 lm | 169 lm/W | L70F10>100000h; L80F10>100000h | -20 - +45°C |
| OMEGA 69W | GLO02069 | 69 W | 10500 lm | 152 lm/W | L70F10>100000h; L80F10=94000h | -20 - +40°C |
| OMEGA 79W | GLO02079 | 79 W | 11000 lm | 139 lm/W | L70F10>100000h; L80F10=86000h | -20 - +45°C |
| OMEGA 100W | GLO02100 | 100 W | 16000 lm | 160 lm/W | L70F10>100000h; L80F10>100000h | -20 - +45°C |
| OMEGA 113W | GLO02113 | 113 W | 16000 lm | 142 lm/W | L70F10>100000h; L80F10=90000h | -20 - +40°C |
| OMEGA 119W | GLO02119 | 119 W | 18500 lm | 155 lm/W | L70F10>100000h; L80F10>100000h | -20 - +45°C |
| OMEGA 137W | GLO02137 | 137 W | 18500 lm | 135 lm/W | L70F10>100000h; L80F10=88000h | -20 - +40°C |
| OMEGA 149W | GLO02149 | 149 W | 22000 lm | 148 lm/W | L70F10>100000h; L80F10=86000h | -20 - +45°C |
Dimensions
| Product code | Product family code | Length (L) | Height (H) | Width (W) | Weight |
|---|---|---|---|---|---|
| OMEGA 43W | GLO02043 | 1204 mm | 51 mm | 88 mm | 3,5 kg |
| OMEGA 47W | GLO02047 | 1204 mm | 51 mm | 88 mm | 3,5 kg |
| OMEGA 57W | GLO02057 | 1204 mm | 51 mm | 88 mm | 3,5 kg |
| OMEGA 63W | GLO02063 | 1204 mm | 51 mm | 88 mm | 3,5 kg |
| OMEGA 62W | GLO02062 | 2370 mm | 51 mm | 88 mm | 5,5 kg |
| OMEGA 69W | GLO02069 | 2370 mm | 51 mm | 88 mm | 5,5 kg |
| OMEGA 79W | GLO02079 | 1204 mm | 51 mm | 88 mm | 3,5 kg |
| OMEGA 100W | GLO02100 | 2370 mm | 51 mm | 88 mm | 5,5 kg |
| OMEGA 113W | GLO02113 | 2370 mm | 51 mm | 88 mm | 5,5 kg |
| OMEGA 119W | GLO02119 | 2370 mm | 51 mm | 88 mm | 5,5 kg |
| OMEGA 137W | GLO02137 | 2370 mm | 51 mm | 88 mm | 5,5 kg |
| OMEGA 149W | GLO02149 | 2370 mm | 51 mm | 88 mm | 5,5 kg |
General Description
| Colour Temperature: | 3000 K, 4000 K, 5000 K |
|---|---|
| Colour Rendering Index: | RA≥ 80, 90 |
| Optic: | Lense optics (batwing, narrow, medium, wide, oval, 90 Deg and asymmetric) |
| Light source shield: | PMMA |
| IP class: | IP 20 |
| Suplly voltage: | 220-240 Vac |
| Frequency: | 50-60Hz |
| PF: | > 0.95 |
| THD: | < 20% |
| Connection: | Chainable max 5*2.5mm2 OR max 3*2.5mm2 and DALI +/- |
|---|---|
| Dimmability: | ON/OFF, DALI |
| Colour: | Galvanized steel/White Steel |
| Material of the luminaire body: | Steel |
| Guarantee: | 5 years |
| Accessories (Installation): |
Roof bracket, Lighting suspension rail bracket, Bracket for ball impact resistant installations on lighting suspension rails, Adjustable lighting suspension rail bracket, Adjustable roof bracket, Bracket for Horizontal Wire (max ⌀8 mm), Threaded rod bracket, Cover, Threaded rod bracket for cover, Lighting suspension rail bracket for cover, Rail bracket Dr= 3000mm-3600mm (2370mm); 2200mm-2400mm (1200mm), Joining part (screws included), Extension profile L=1200 mm and 2370 mm |
| Accessories (Others): | 2*3m Wago Winsta / Enstonet cable set for chained connections, extended connections max 7*2.5mm2 or |
