Gamma

Durable and reliable luminaire for generic lighting from application to another. Thanks to its optimized light distributions and very high quality components GAMMA-product family is the tool for energy- and cost-efficient lighting.
High IP65 ingress protection class. D- class rated luminaire to dusty environments.

PURPOSE: Industry, Parking, Shop

INSTALLATION: Ceiling surface, Contact track, Luminaire suspension track, Suspended

Ask for a quote/offer

IHMISKESKEINEN VALAISTUS KÄYTÄNNÖSSÄ

Tilaa juuri valmistunut suomenkielinen opinnäytetyö ihmiskeskeisen valaistuksen hyödyntämisestä. Valoisia lukuhetkiä!
  • This field is for validation purposes and should be left unchanged.

Benefits and suitability

Benefits

Affordable, reliable and efficient luminaire with optimized light distributions.
Dust tight and water tolerant IP65 classified luminaire, having D - classification, Made in Finland.
Easy and quick assembly. The accessories enable chaining and through wiring.

Suitability

Even light distribution combined with high IP-class enable excellent suitability for lighting parking halls, stores, logistic premises, industrial and manufacturing sites. Excellent luminaire providing even lighting experience for various applications thanks to its multiple power and length versions, high IP rating and D-rating. Excellent applicability at department stores, parking halls, logistics, industrial and manufacturing facilities.

Product families and variants

Model Type Code Power Luminous flux Luminaire Efficacy Lifetime Operating temperature
GAMMA 33W GLG01033 33 W 4300 lm 130 lm/W L70F10>100000 h; L80F10=93000 h -20 - +40 °C
GAMMA 40W GLG01040 40 W 5000 lm 125 lm/W L70F10>100000 h; L80F10=90000 h -20 - +40 °C
Notes:

All values in +25°C ambient temperature, luminous flux tolerance +-5%, output power tolerance +-5%.

Dimensions

Model Type Code Length (L) Height (H) Width (W) Weight
GAMMA 33W GLG01033 1140 mm 79 mm 87 mm 2,5 kg
GAMMA 40W GLG01040 1140 mm 79 mm 87 mm 2,5 kg

General Description

Colour Temperature: 3000 K, 4000 K, 5000 K (1
Colour Rendering Index: RA≥ 80
Optic: opal or medium
IP class: IP 65
IK class: IK 07
Supply voltage: 220-240 Vac
Frequency: 50-60 Hz
PF: > 0.95
THD: < 15%
Connection:

Internal chainable terminal block 5*2.5 mm2 or 3*2.5 mm2 and +/- DALI
Dimmability: ON/OFF or DALI
Colour: Upper part of the luminaire and end caps light gray RAL7035, lower part diffuse white
Material of the luminaire body: PC
Guarantee: 5 years
Accessories (Installation):

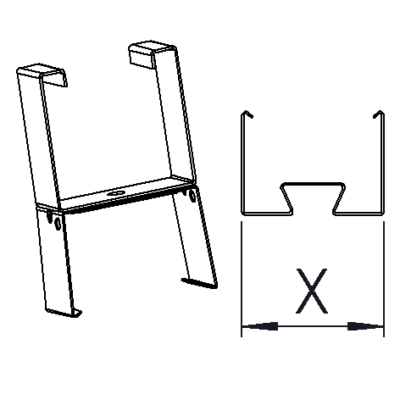

Bracket for Horizontal Wire, Mounting bracket (standard), Lighting suspension rail bracket, Adjustable lighting track bracket, Adjustable surface mounting bracket
Accessories (Others):

Through wiring set, chaining set, installation cable, shielding class II-assembly
Notes:

1) SDCM ≤5, option SDCM ≤4

D-classified Gamma-luminaire for use in environments where an accumulation of
- Conductive dust on the shielding class I luminaire may be expected (IEC 60598-2-24:24.5 c))
- Non-conductive dust on the shielding class II luminaire may be expected (IEC 60598-2-24:24.5 b))

Attachment and downloads

badge_avainlippu badge_ce badge_d_luokka badge_suojausluokka_i_suojamaadoitettu badge_suojausluokka_ii_suojaeristetty badge_weee
