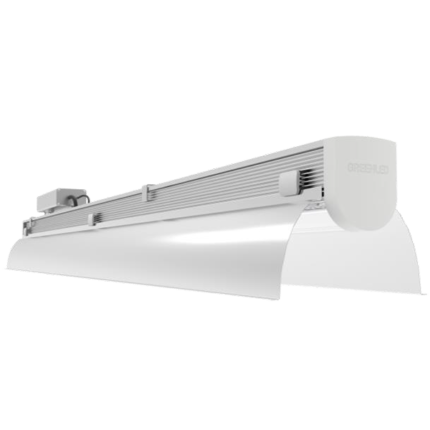

Eco E II High


Eco E II High

Efficient Finnish luminaire know-how. Excellent LEDs (180 lm/W) and the luminaire designed specially for the LEDs ensure the best end result in terms of long lifetime as well as efficiency. DALI control provides the comfort and energy-efficiency of smart lighting.

PURPOSE: Industry, Parking hall, Sports hall

INSTALLATION: Ceiling surface, Contact track, Luminaire suspension track, Suspended

Benefits and suitability

Benefits

Extremely energy efficient (up to 129 lm/W) high bay or low bay luminaire with low lifetime cost. Long life is ensured with carefully chosen components and superior thermal implementation. Easy and quick to install.

Suitability

General luminaire for several applications to replace high bay and low bay luminaires. Reliable, easy and energy-efficient replacement of high bay and/or low bay luminaires based on high pressure sodium, metal halide or mercury lamps. Recommended installation height: low bay luminaire 8-12m and high bay luminaire 12-20 m.

General Description

Product family: ECO E II HIGH 210 W
Product family code: GL992100
Power: 210 W
Luminous flux: 27 000 lm
Luminaire efficacy: 129 lm/W
Light source: LED
Colour temperature: 3000 K, 4000 K, 5000 K
Colour rendering (CRI): > 80
Standard optics: Clear: Narrow, medium or wide
ECG: Inventronics
Connection:

Chainable terminal block max 5*2.5 mm2 (L,N, PE and +/- DALI) (option installation cable)

Dimmability: DALI
Suplly voltage: 127-277 Vac
Frequency: 50-60 Hz
PF: > 0,95
THD: < 20%
IP-Class: IP 44
Operational temp.: -25 - +45aC
Colour: Grey aluminium
Material: Aluminum
Light source shield: PC
Lifetime: L80, F10 80 000h
Guarantee: 5 years
Lenght: 1480 mm
Height: 185 - 235 mm depending on optics and version
Width: 165 - 234 mm depending on optics and version
Weight: 7.2 kg
